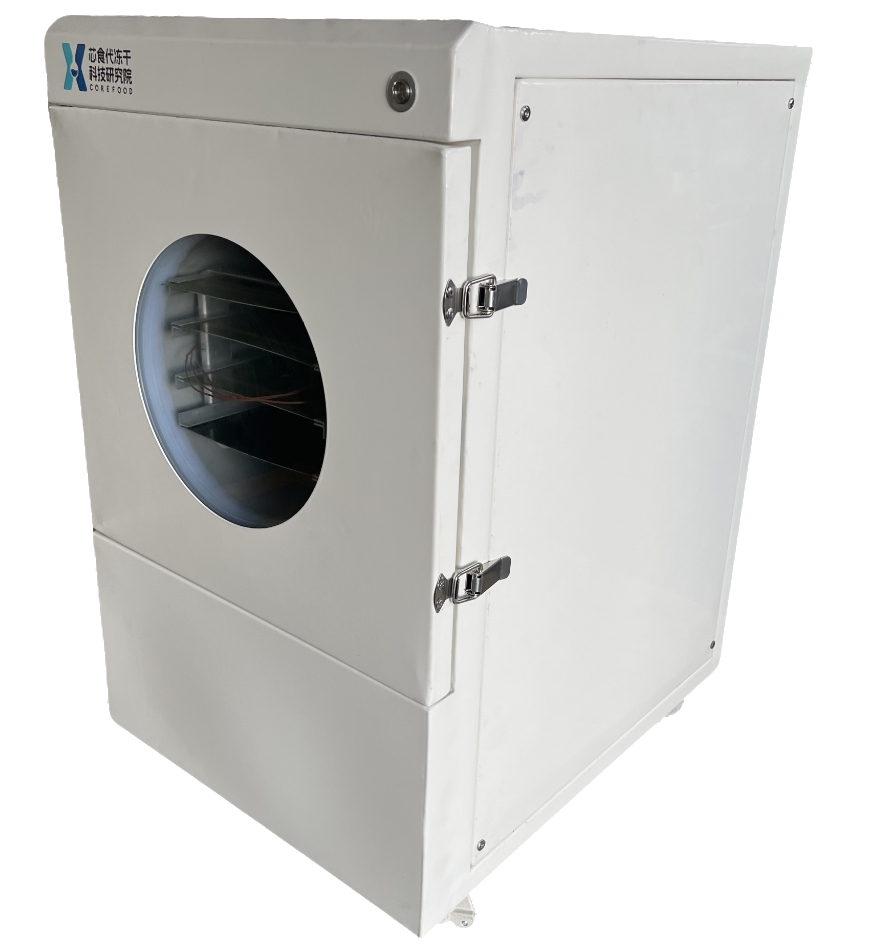

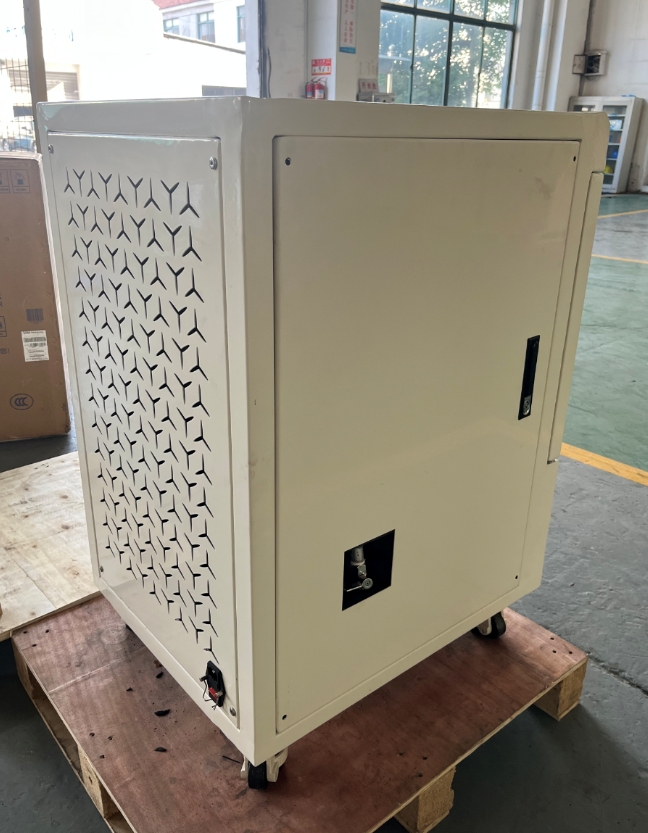

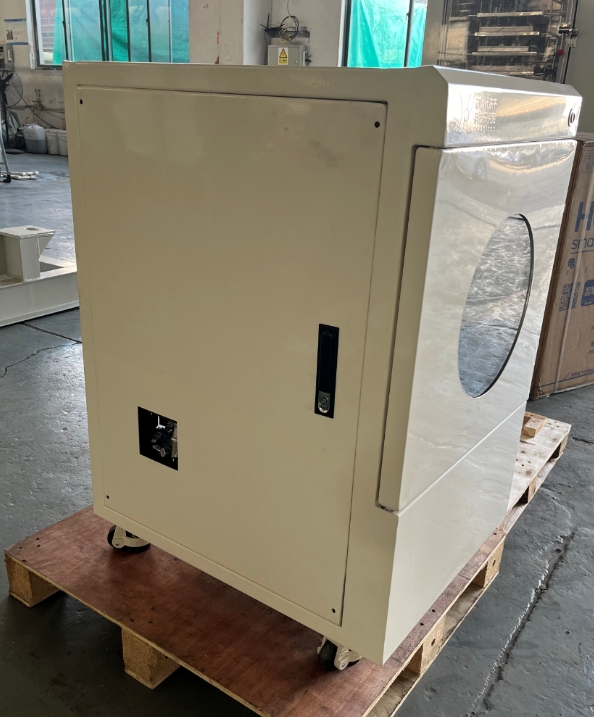

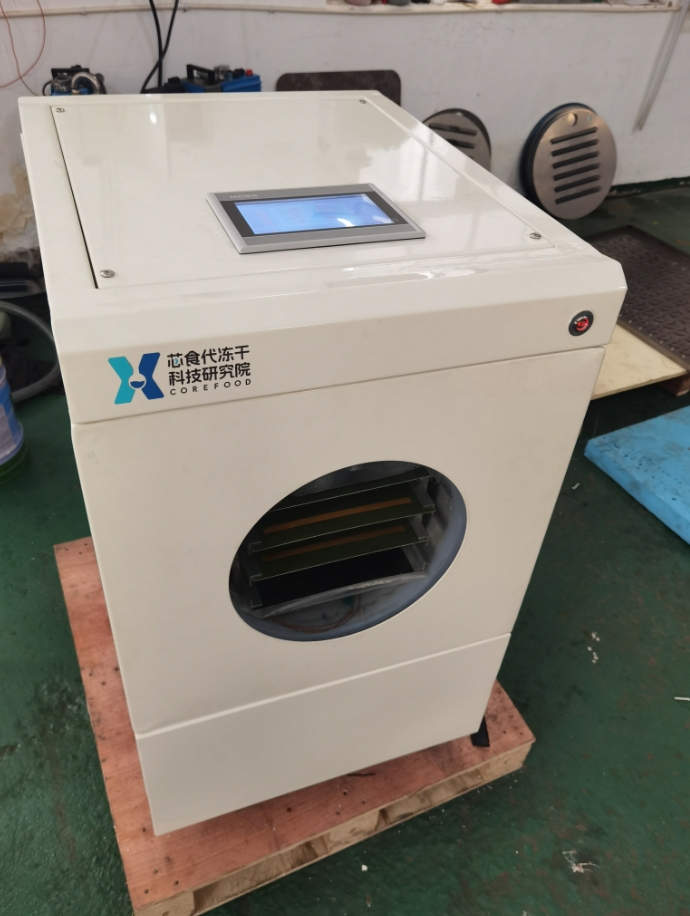

家用冻干机-基本参数
使用说明:设备通电→原料准备好装盘→放入冻干机→预冻及升华干燥(冻干机中可预冻)→ 出仓包装
原料加工量:3KG-4KG
规格型号: XSD-FD-0.2
Instructions for use:power on the equipment → raw materials ready for
loading → put into the freeze-drying machine → pre-freezing and sublimation drying
(freeze-drying machine can be directly pre-frozen)→ out of the warehouse packaging
Raw material processing capacity:3KG-4KG
Specification Model:XSD-FD-0.2
型号Model | XSD-FD-0.2 |
整机外形及尺寸mm Overall appearance and size(mm) | 方形一体 690*560*970 Square |
冻干面积 Freeze-dried effective area | 0.2㎡ |
装机功率 Installed power | 0.8KW |
整机重量 Machine weight | 130KG |
隔板层数 Baffle layer number | 3+1层(layer) |
隔板间距 Spacer spacing | 45mm |
料盘尺寸mm Size of material tray(mm) | 290*224 |
隔板温度 Clapboard temperature | -30℃~+80℃ |

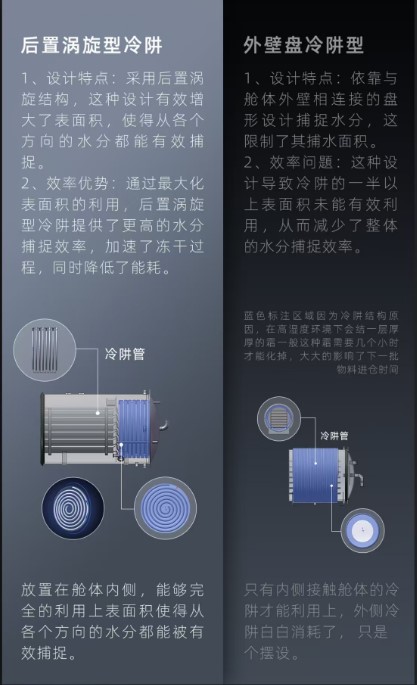

冷阱温度 Cold trap temperature | 最低-40℃ Minimum negative |
冷却方式 Cooling mode | 风冷 Air cooled |
极限真空 Ultimate vacuum | <10Pa(空仓) (empty container) |
加热方式 Heating method | 电加热 Electric heating |
电源 Power supply | 220V/50HZ |
一般装料容量 General charging capacity | 3-4KG |
捕水量 Catch Water | 3KG |
注:以上参数为基础参考,具体根据产品来定
(1)、装机功率不是设备操作实际功率,实际运行功率会低于以上参数;
(2)、物料装载量具体看加工产品来定。
